Sensoco T

Sensoco T

from 109.00

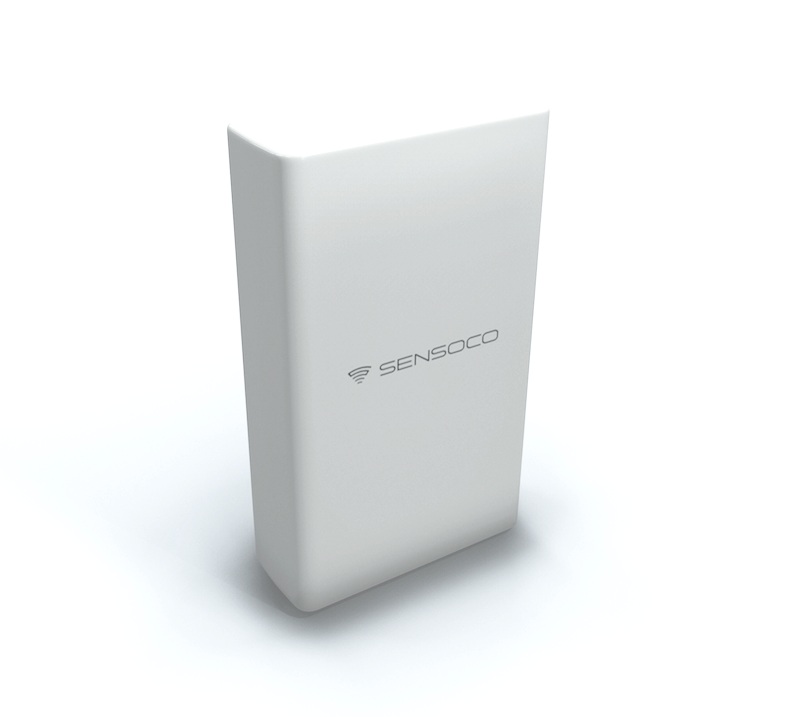

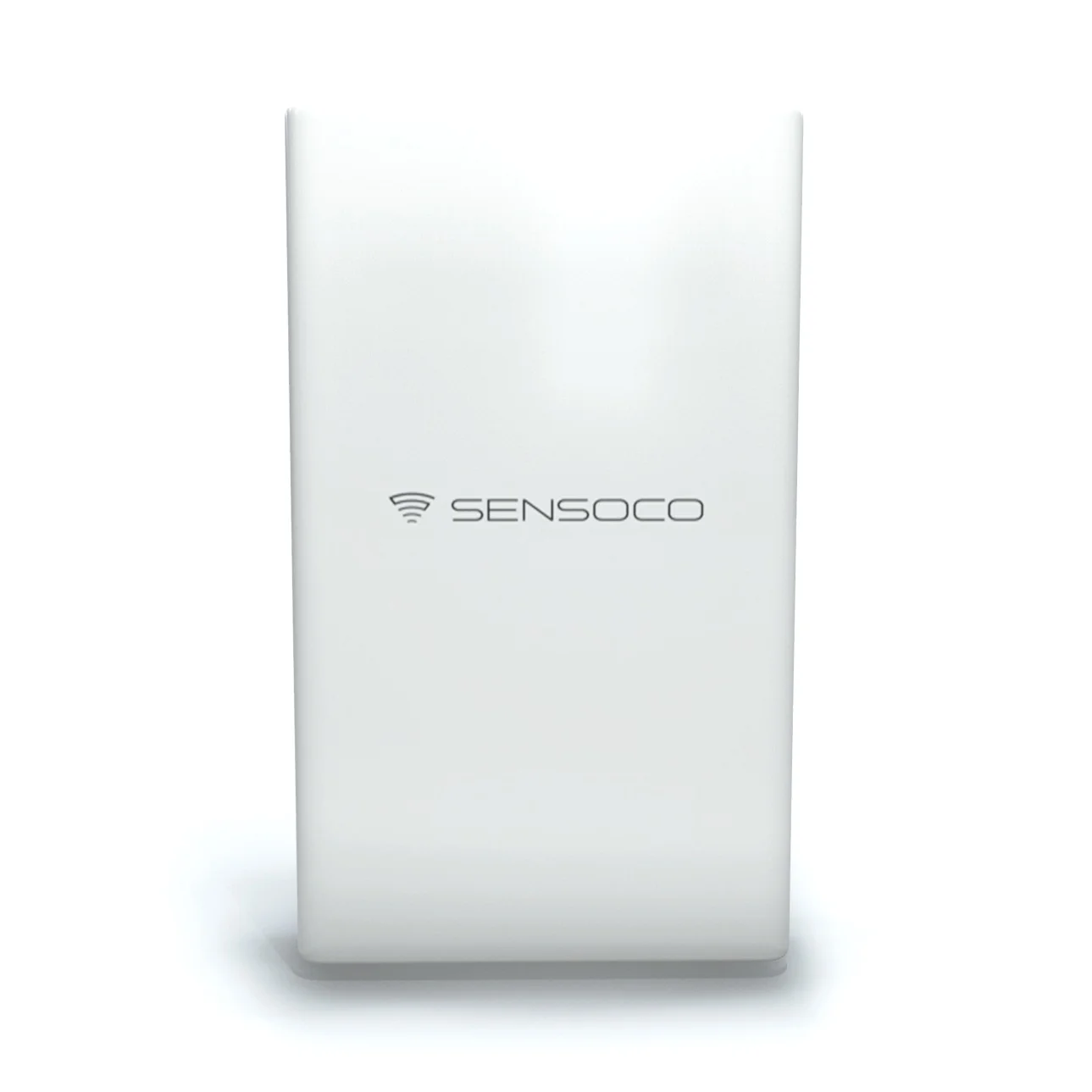

Sensoco T is a universal and wireless battery operated standalone temperature sensor utilizing the existing Smart Metering infrastructure like Multi Utility Communication devices (MUC) as standard gateways to Ethernet, DSL, GPRS and Powerline networks. The motherboard of the T-sensor is sealed and corrosion protected according to automotive standards and therefore suitable for harsh environments like cooling devices and refrigerated warehouses. Historic data can be stored for future analysis according to HACCP regulations.

Sensoco T is using a proprietary wireless protocol. Due to the extremely low quiescent current the battery lifetime can be higher than 10 years.

Sensoco T is fully compatible to the Sensoco Gateway made by GREATECH.

APPLICATIONS
• Smart Metering and Energy Saving HVAC Control
• Process Control & Instrumentation
• Food Processing
• Medical Instruments
• Local Transportation
• Museums

Wireless Protocol:
Sensor:
Quantity:
Add To Cart

  • Temperature Range: -30°C to + 50°C

  • Factory life-time calibrated digital sensor

  • Resolution (T): 0,01°C Accuracy: +/- 0,3°C

  • Sensor Type: SoC System-on-a-Chip

    Capacitive Polymer Sensor

    Fully Calibrated & Temperature Compensated

  • ISM band operating frequency: 433 MHz

  • Narrow band long range operation

  • Data Rate: 100 kchips/s

  • RF Power: 9 dBm

  • Antenna: internal

  • Transmission Cycle: 5 min., customisable

  • Power Supply: AA Industrial Batteries

  • Enclosure: white Industrial Plastic Case

  • Weight: 190 g incl. batteries

  • Dimensions: 72 x 124 x 31 mm
