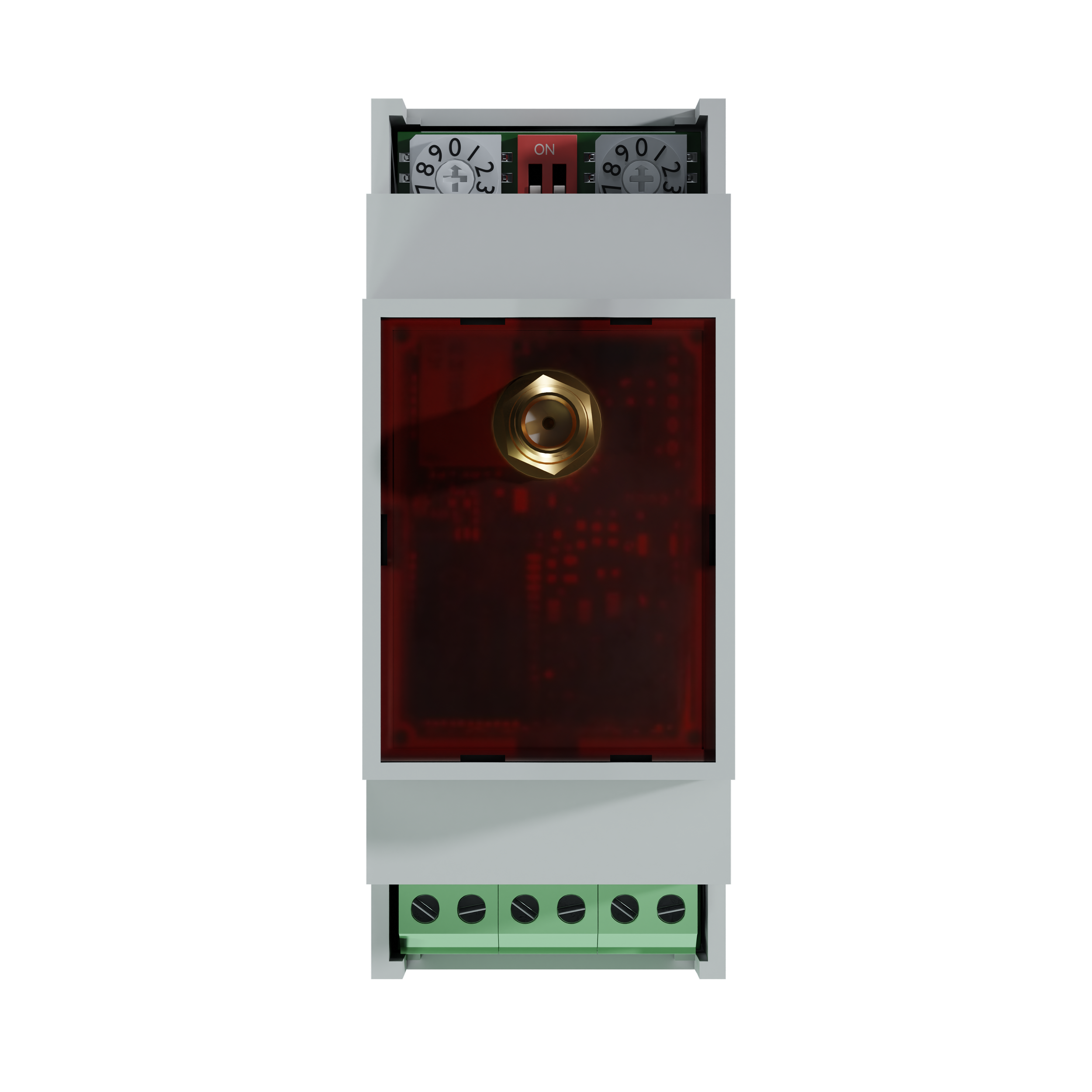

Sensoco Wireless Mioty Modbus RTU Bridge

What is Sensoco® Modbus RTU Bridge?

Sensoco® Modbus RTU Bridge is a universal system component for connecting all types of measuring devices and sensors with RS485 Modbus RTU protocol. Applications such as smart metering or the measurement of pressure, flow, temperature, gas concentration, position, etc. are possible. The data from the connected devices can be read out and transmitted wirelessly.

What are the main features?

• Mioty Modbus Bridge

• RS485 interface

• Modbus RTU protocol

• UART data rate: Standard 9600 bps

• Option: Baud rate selector switch

• Number of slaves: 1 to 10

• LTN telegram division: Ultra Narrowband

• ETSI Technical Specification TS 103 357

• Supports modes EU0, EU1, EU2, US0

• RF power: 14 dBm

• Operating frequency: 868 MHz and 916 MHz

• Data rate: 2380 bits/s

• Antenna: SMA socket

• Dashboards: Own and available from several providers

• Power supply: External 5 V – 24 V DC at 50 mA

• Operating temperature range: -20 °C to +50 °C

• Housing: Standard DIN rail, 2 modules

• Dimensions: 35 x 86 x 58 mm

• Manufactured in Germany

What is included?

• Sensoco® Modbus RTU Bridge

• Antenna

• Quick start guide
