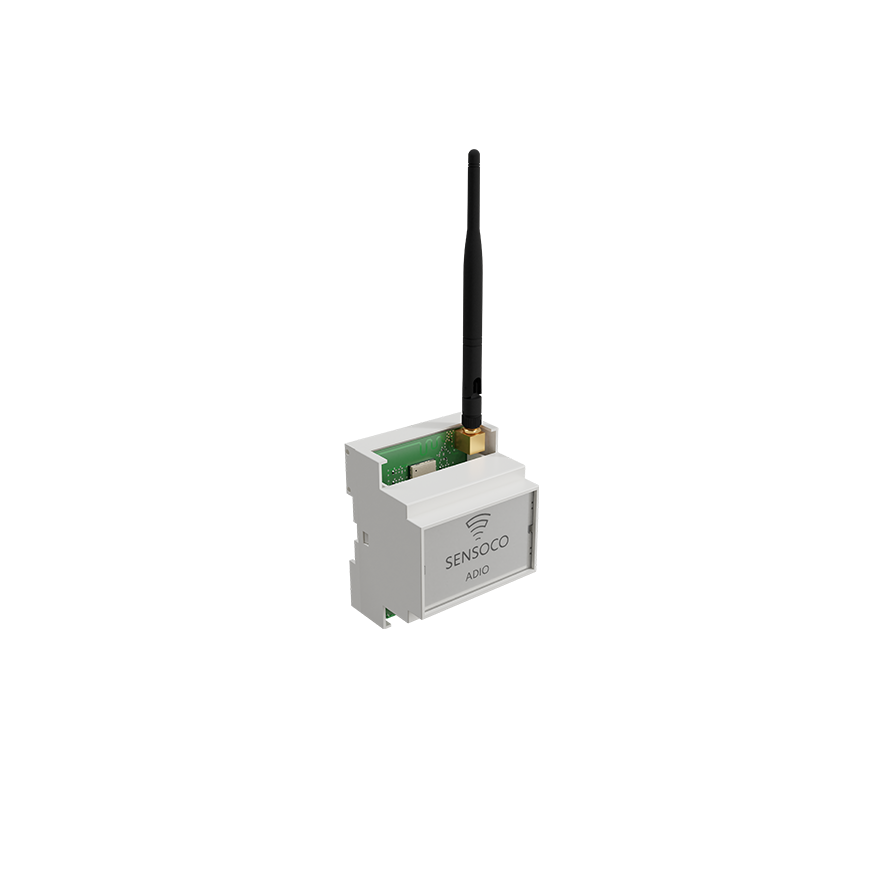

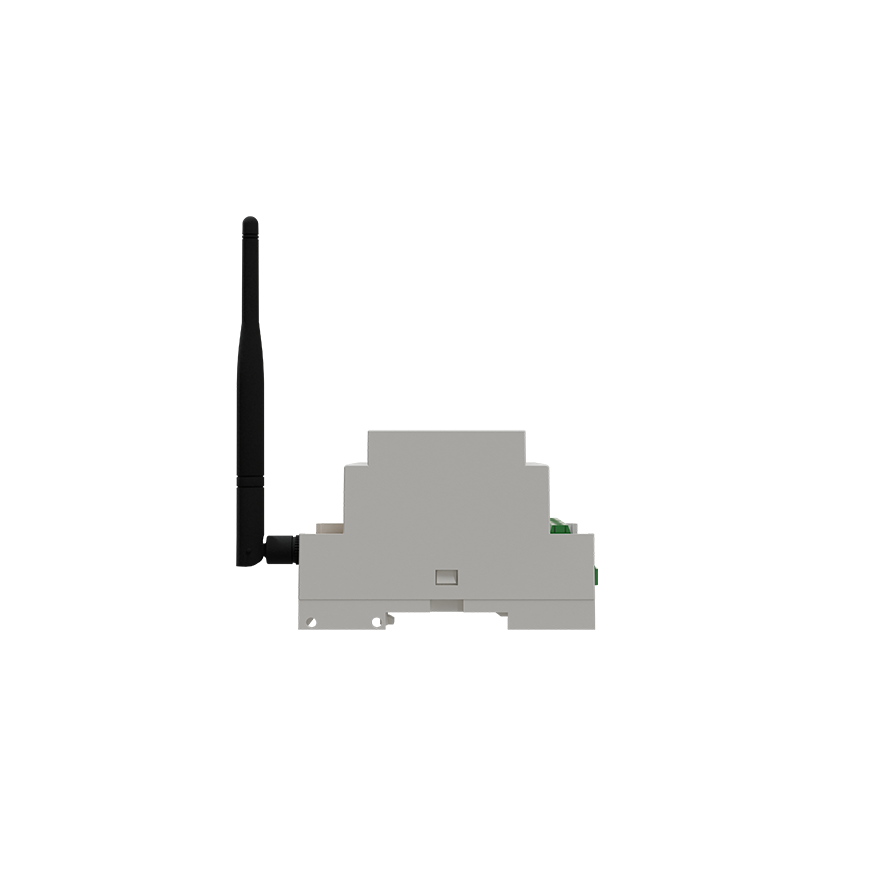

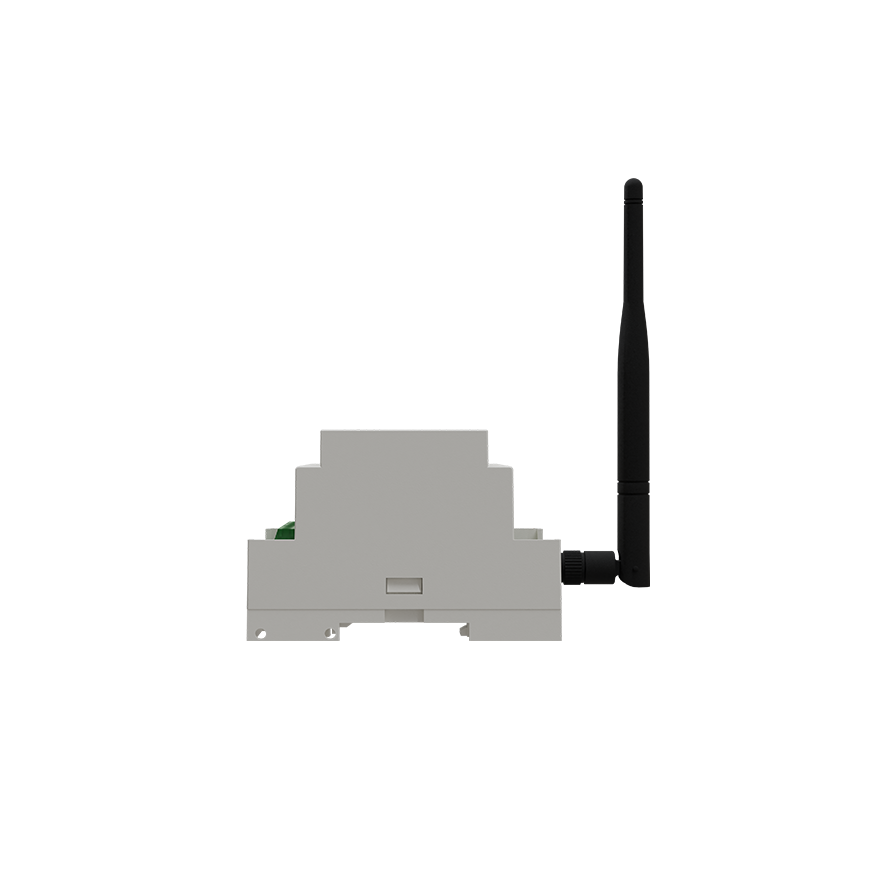

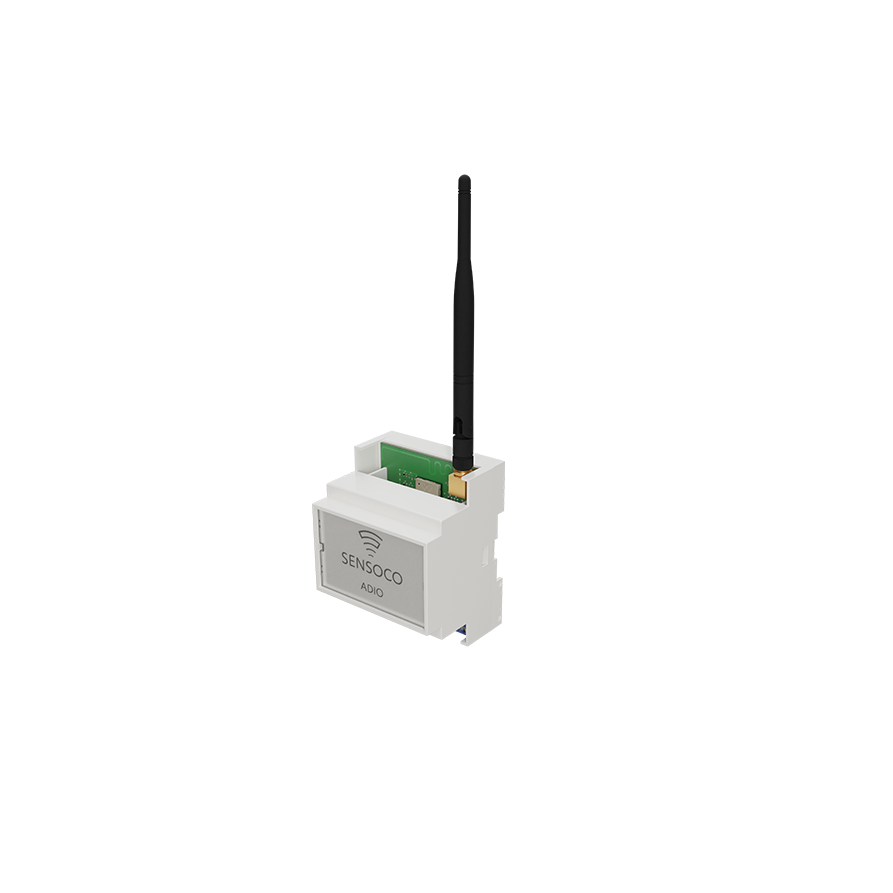

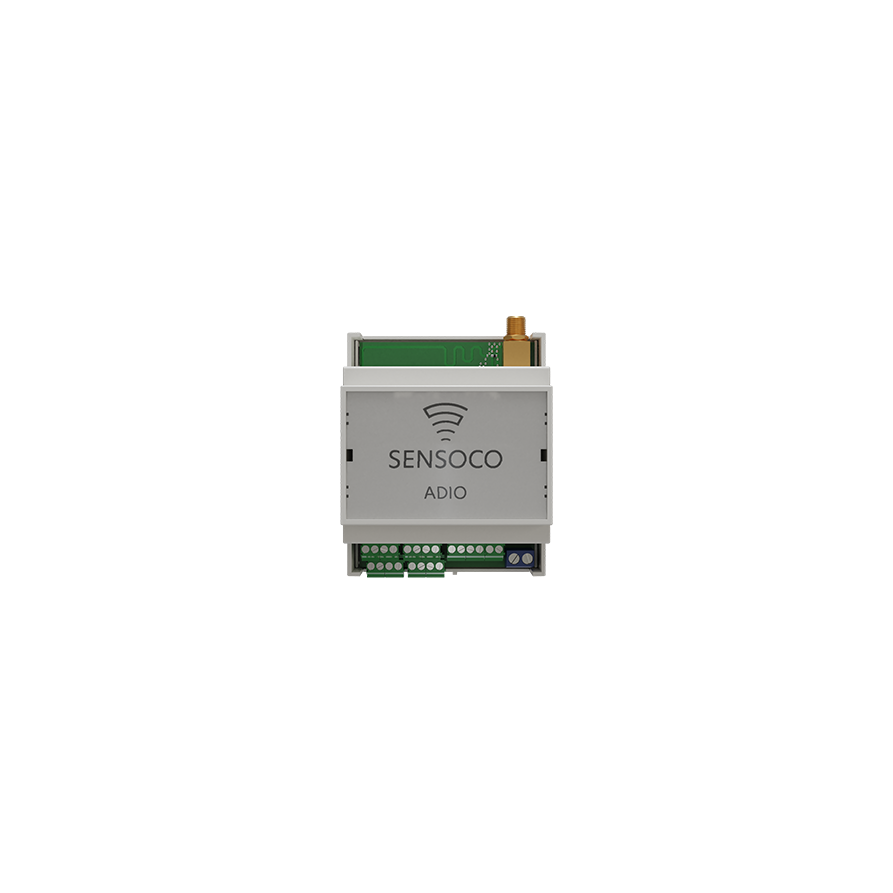

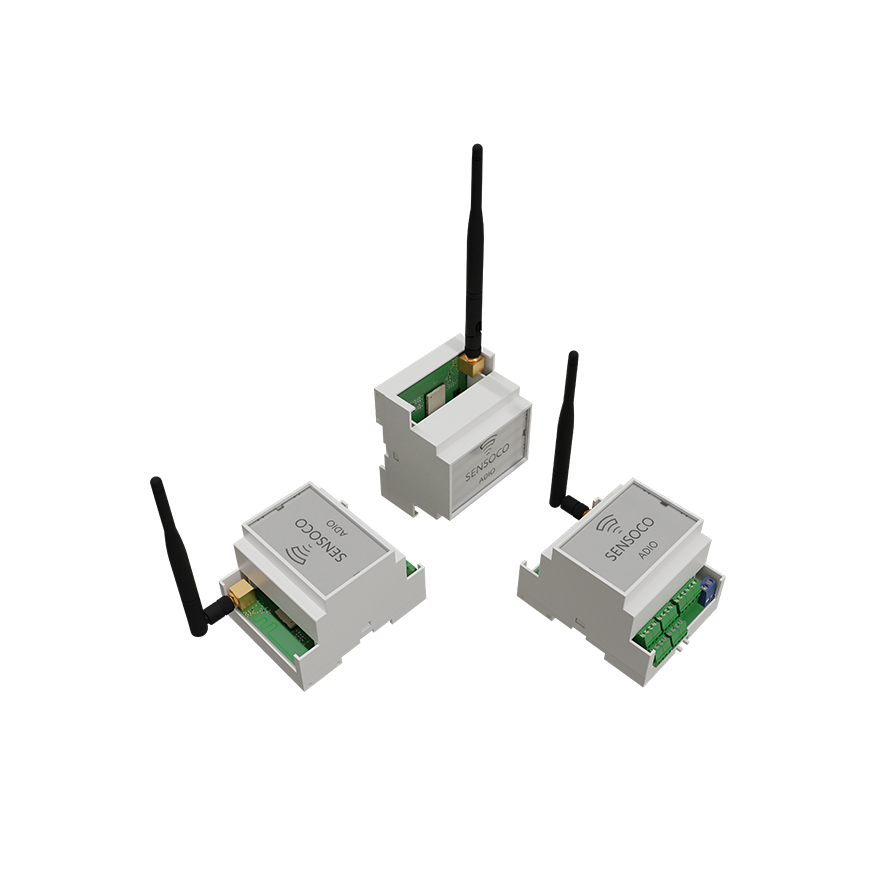

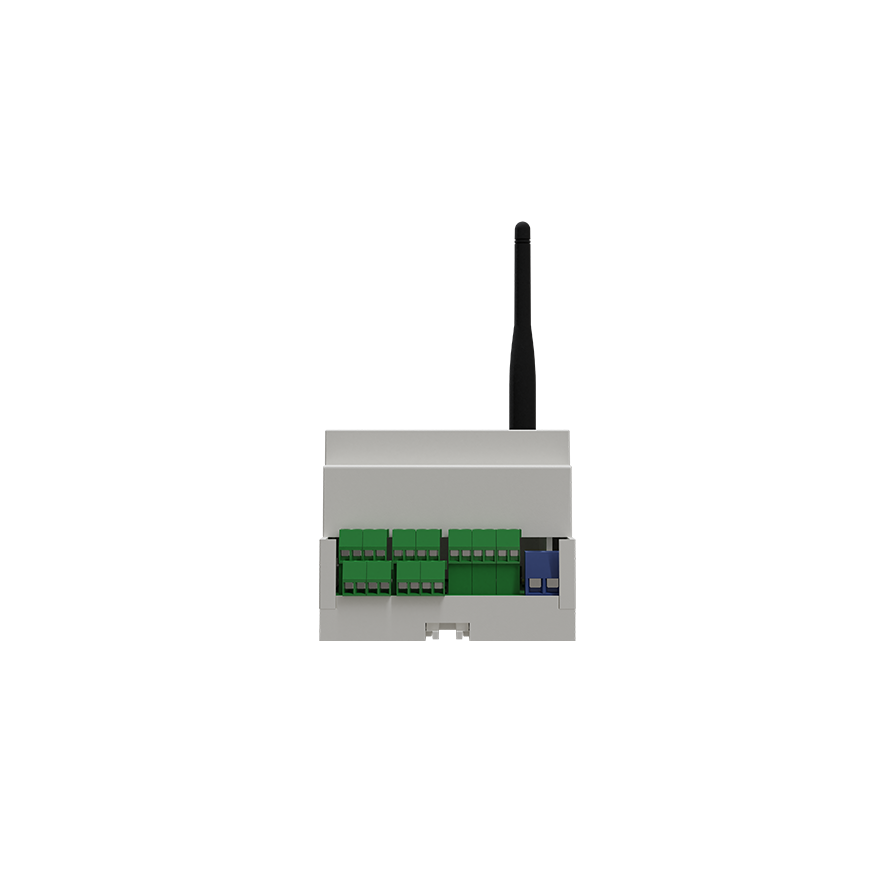

Sensoco ADIO

€199.00

Sensoco ADIO: the first of its kind. A universal transceiver which can be connected to any kind of sensor with an analog output of 0V to 10V or 4mA to 20mA full-scale. These sensors follow a worldwide standard and are available for applications where pressure, flow, temperature, gas concentration, postion etc. have to be measured. The digital inputs can be connected to contacts or other control units with an open collector output or dry contact. For data communication the Sensoco ADIO is using the worlwide available wireless network from Sigfox. Optionally Sensoco ADIO can be equipped with a Wireless M-BUS transceiver.

Features:

• 4 Analog Inputs 0V - 10V / Option: 4mA – 20mA

• 4 Digital Inputs / 3 Digital Outputs

• All Inputs are protected against overvoltage

• Communication Network: SIGFOX

• Worlwide Network Access via API

• Operating Frequency: 868.130 MHz

• RF Power: 14dBm

• Option: wireless -MBus, -KNX, ZigBee-ZNM

• Antenna: internal / option: external SMA female

• Transmission Cycle: max. 6 / hour or less

• Dashboards: available from several Vendors

• Power Supply: external 5V DC @ 100mA

• Back-up Supply: internal Lithium Battery 3.6V

• Operating Temperature Range: -20 C to +50 C

• Enclosure: Standard DIN-Rail 4 Modules Size

• Dimensions: 70 x 86 x 58 mm

Sensoco ADIO: the first of its kind. A universal transceiver which can be connected to any kind of sensor with an analog output of 0V to 10V or 4mA to 20mA full-scale. These sensors follow a worldwide standard and are available for applications where pressure, flow, temperature, gas concentration, postion etc. have to be measured. The digital inputs can be connected to contacts or other control units with an open collector output or dry contact. For data communication the Sensoco ADIO is using the worlwide available wireless network from Sigfox. Optionally Sensoco ADIO can be equipped with a Wireless M-BUS transceiver.
